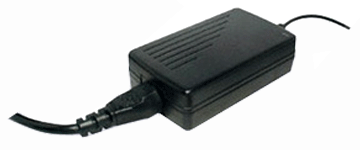

Enclosed Type SMPS Specification Sheet

PCB Name/ Description : Desktop Type upto 15W INPUT   Description Output AC Input Voltage 230V AC AC Input Voltage range 90V TO 270V AC AC Input frequency 50Hz to 60Hz Primary current protection NTC & Fuse Inrush Current <15A OUTPUT   Description Single Output Normal DC O/P Voltage 12V 15V Minimum Load Current 0A 0A Maximum Load Current 1.25A 1A Maximum O/P Power 15W 15W Ripple & Noise < 60mV Peak to Peak Under and Over Voltage protection 110% Total O/P Regulation < 1% Short Circuit protection With auto recovery. Yes MECHANICAL   Description Output Dimensions 157mm X 65mm X 40mm I/P plug Type 2/3 Pin Mains Chordr O/P plug Type Connector / Wire with PIN ENVIRONMENT   Description Output Operating temp Upto 60 deg.C at full load
