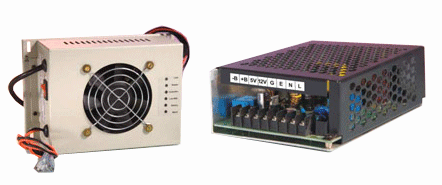

| Enclosed
Type SMPS Specification Sheet |
|
| PCB Name/ Description
: Enclosed Type upto 150W |
| INPUT |
|
| Description |
Output |
| AC
Input Voltage |
230V
AC |
| AC
Input Voltage range |
90V
TO 270V AC |
| AC
Input frequency |
50Hz
to 60Hz |
| Primary current protection |
NTC & Fuse |
| Inrush
Current |
<15A |
| OUTPUT |
|
| Description |
Single Output |
| Normal DC O/P Voltage |
24V |
| Minimum Load Current
|
0A |
| Maximum Load Current
|
6A |
| Maximum O/P Power |
144W |
| Ripple & Noise |
<
100mV Peak to Peak |
| Under and Over Voltage
protection |
110% |
| Total O/P Regulation
|
< 1% |
| Short Circuit protection
With auto recovery. |
Yes |
| Withstand Voltage |
1.5kV AC between I/P
& O/P for 1min |
| |
1kV AC between L, N
& E for 1min |
MECHANICAL
|
|
| Description |
Output |
| Dimensions |
153mm X 72mm X 53mm |
| I/P plug Type |
3 Pin MKDS Type Connector |
| O/P plug Type |
2 Pin MKDS Type Connector |
ENVIRONMENT
|
|
| Description |
Output |
| Operating temp |
Upto 60 deg.C at full load |
|
|
|
