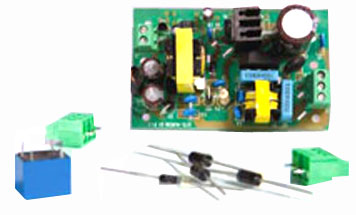

Open Frame SMPS Specification Sheet
PCB Name/ Description : Open Type upto 15W
INPUT
Description
Output
AC Input Voltage
240V AC
AC Input Voltage range
90V TO 270V AC
AC Input frequency
50Hz to 60Hz
Primary current protection NTC & Fuse
Inrush Current
<15A
OUTPUT
Description
Output
Normal DC O/P Voltage
5V
12V
10V
12V
15V
Minimum Load Current
0A
0A
0A
0A
0A
Maximum Load Current
1A
0.5A
1A
1.25A
1A
Maximum O/P Power
5W
6W
10W
15W
15W
Ripple & Noise
< 60mV Peak to Peak
Under and Over Voltage protection 110%
Total O/P Regulation < 1%
Short Circuit protection With auto recovery. Yes
O/p power Indications. O/P power on LED
MECHANICAL

Description
Output
Dimensions 90mm X 58mm X30mm
  77mm X 55mm X30mm
I/P plug Type 3 Pin MKDS Connector
O/P plug Type 2 Pin MKDS Connector
ENVIRONMENT

Description
Output
Operating temp Upto 60 deg.C at full load
