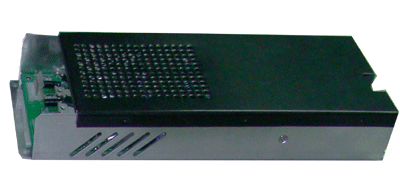

90W LED Driver Specification Sheet
PCB Name/ Description : ATS-120WST R1.0 & 120WSTA
INPUT
Description
Output
AC Input Voltage
240V AC
AC Input Voltage range
130V TO 250V AC
AC Input frequency
50Hz to 60Hz
Primary current protection
NTC & Fuse
Power factor
0.99
Inrush Current
<15A
OUTPUT
Description
Output
Normal DC O/P Voltage
65W
Minimum Load Current
0A
Maximum Load Current
280mA
Maximum O/P Power
18.2W
Ripple & Noise
< 100mV
Under and Over Voltage protection
Feedback loop
Total O/P Regulation
< 2%
Short Circuit protection With auto recovery.
Yes
O/p power Indications.
N /A
Dynamic load Regulation
N /A
MECHANICAL
Description
Output
Dimensions
244mm X 82mm X32mm
I/P plug Type
3 Pin MKDS Connector
O/P plug Type
2 4 Pin CPU connector and 1 4 pin CPU connector with 12mm 23 x 76 wires
ENVIRONMENT
Description
Output
Operating temp
Upto 60 deg.C at full load
SAFETY
Description
Output
Isolation
1.5KV AC between Input and Output for 1.5 Min.
Leakage Current
10mA
