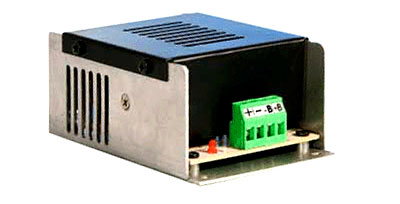

| Battery
Backup System Specification Sheet |
|
| PCB Name/ Description
: Battery Backup |
| INPUT |
|
| Description |
Output |
| AC
Input Voltage |
230V
AC |
| AC
Input Voltage range |
90V
AC to 270V AC |
| AC
Input frequency |
50Hz
to 60Hz |
| Primery Current Protection |
NTC, Fuse |
| Inrush
Current |
<15A |
| OUTPUT |
|
| Description |
Output |
| Normal DC O/P Voltage |
|
| Minimum Load Current
|
|
| Maximum Load Current
|
|
| Maximum O/P Power |
|
| Ripple & Noise @230V
AC |
<60mV Peak to Peak |
| Total O/P Regulation
|
N/A |
| O/p power Indications. |
O/p power on LED |
| Type f Charger |
Current Controlled Charger |
| Reverse Battery Polarity
Protection |
Yes |
| Reverse Battery PolarityCorector |
Optional |
| Withstand Voltage |
1.5kV AC Between I/p
& O/p for 1min |
| |
1kV AC Between L, N
& E for 1min |
MECHANICAL
|
|
| Description |
Output |
| Dimensions (Approximate) |
1 (120mm X 72mm X 40mm) |
| |
2 (153mm X 72mm X 53mm) |
| I/P plug Type |
3PIN MKDS Type Connector |
| O/P plug Type |
2PIN MKDS Type Connector |
ENVIRONMENT
|
|
| Description |
Output |
| Operating temp |
Upto 60 deg.C |
|
|
|
