| Automatic
Pick & Place Machine MYDATA - MY9 |
|

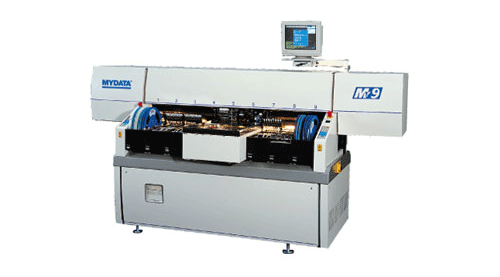

Overview :
6100 CPH, Agilis Intelligent feeders, Electrical
and Physical component verification. Very High Accuracy,
Full High Mix, High Volume Machine with capability to
populate any type of Board with any type of component.
Length: 2820 mm (111.02”)
Height excl. monitors: 1450 mm (57.09”)
Weight (approx): 1800 kgs |
| Specifications:
|
|
| Description |
Output |
| Total
Placement Repeatability X, Y Theta |
25µm,
0.08° at 3 sigma |
| Placement Rate |
6100 CPH ( production
average up to 5000 cph, tact time 0.55s)
Can be upgraded to 21000 CPH |
| Board Handlng |
Min: 50 x 50 mm (2.0”
x 2.0”)
Max: 440 x 508 mm (17.3” x 20.0”) |
| Feeder Capacity |
Max 96 8mm-tape or 32
tape, Stick and Tray components. |
| Vision System |
DVS |
| Power Requirements |
Three Phase AC 6.6kVA
(3x2.2kVA) |
| Power Consumptions |
1.8kW |
| Air Temprature |
+18°C to +35°C |
| Operating System |
Linux |
| System
Software |
TPSys |
| Component Range |
Chips, SOIC, PLCC, TSOP,
QFP, BGA, Flip Chip, CSP.
Min size: 0.4 x 0.2 mm (01005) |
|
|
|
