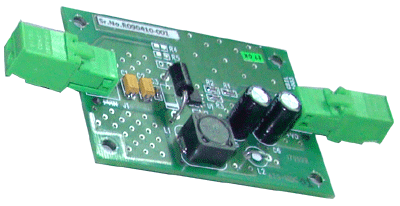

DC-DC Converter Specification Sheet
PCB Name/ Description : ATS - NIDC
INPUT
Description
Output
DC Input Voltage
12V DC
DC Input Voltage range
10V to 36V DC
OUTPUT
Description
Output
Normal DC O/P Voltage
+5V
Minimum Load Current
0 A
Maximum Load Current
1A continuous
Maximum O/P Power
5W continuous
Ripple & Noise
< 50mV
Under and Over Voltage protection
Feedback loop
Total O/P Regulation
< 2%
Short Circuit protection With auto recovery.
Yes
O/p power Indications.
N /A
Dynamic load Regulation
N /A
MECHANICAL
Description
Output
Dimensions
130mm X 40mm X 30mm
I/P plug Type
2 Pin terminal strip
O/P plug Type
2 Pin terminal strip
ENVIRONMENT
Description
Output
Operating temp
Upto 60 deg.C at full load
