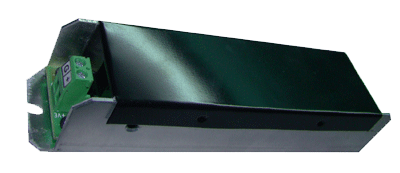

25W LED Driver Specification Sheet
PCB Name/ Description : ATS-50WLS R1.0
INPUT
Description
Output
AC Input Voltage
230V AC
AC Input Voltage range
90V AC to 270V AC
AC Input frequency
50Hz to 60Hz
Primary current protection
NTC & Fuse
Power factor
> 0.9
Inrush Current
<15A
OUTPUT
Description
Output
Normal DC O/P Voltage
16V
26V
65V
Minimum Load Current
0A
Maximum Load Current
650mA
700mA
350mA
Maximum O/P Power
10.4W
18.2W
22.75W
Ripple & Noise
< 100mV
Under and Over Voltage protection
Feedback loop
Total O/P Regulation
< 2%
Short Circuit protection With auto recovery.
Yes
O/p power Indications.
N /A
Dynamic load Regulation
N /A
MECHANICAL
Description
Output
Dimensions
155mm X 36mm X 32mm
I/P plug Type
2 Pin MKDS connector
O/P plug Type
2 Pin MKDS
ENVIRONMENT
Description
Output
Operating temp
Upto 60 deg.C at full load
SAFETY
Description
Output
Isolation
1.5KV AC between Input and Output for 1.5 Min.
Leakage Current
10mA
