RoHS Compliant SMPS Specification Sheet

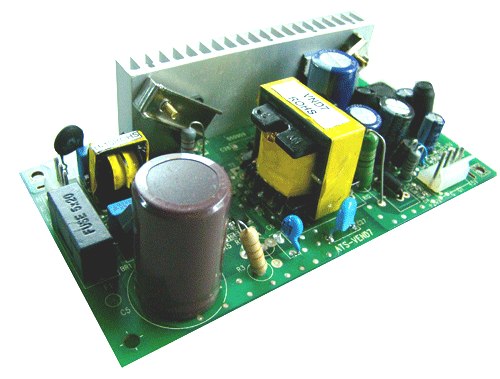

PCB Name/ Description : ATS- RoHS Compliant SMPS
INPUT
Description
Output
AC Input Voltage
230V AC
AC Input Voltage range
90V TO 300V AC
AC Input frequency
50Hz to 60Hz
Inrush Current < 15 A
Primary current protection NTC & Fuse
OUTPUT
Description
Single Output
Normal DC O/P Voltage
24V
5V
Minimum Load Current
0A
Maximum Load Current
4A
1A
Maximum O/P Power
96W
5W
Ripple & Noise @ 230V AC
< 100 mV pk-pk
< 50 mV pk-pk
Over Voltage protection
Feedback Loop
Switching Regulator
Total O/P Regulation
< 2%
< 2%
Output power Indications
Onboard RED LED
Onboard GREEN LED
Short Circuit protection With auto recovery.
Yes
Yes
MECHANICAL

Description
Output
Dimensions 150mm X 80mm X 45mm
Weight N/A
Input plug Type 3 Pin CPU Connector
Output plug Type 4 Pin CPU Connector
ENVIRONMENT

Description
Output
Operating humidity N/A
Operating temp Upto 70 deg.C at full load
SAFETY

Description
Output
Isolation 1.5KV AC between Input and Output for 1.5 Mins
Leakage Current 10mA
