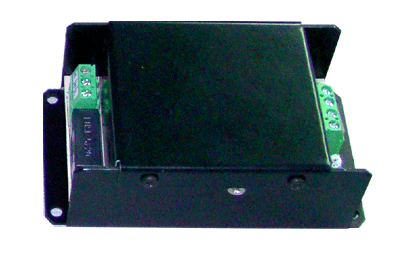

30W LED Driver Specification Sheet
PCB Name/ Description : ATS-75WL R1.0
INPUT
Description
Output
AC Input Voltage
230V AC
AC Input Voltage range
90V AC to 270V AC
AC Input frequency
50Hz to 60Hz
Primary current protection
NTC
Power factor
> 0.9
Inrush Current
<15A
OUTPUT
Description
Output
Normal DC O/P Voltage
26V
36V
86V
Minimum Load Current
0A
Maximum Load Current
700mA
700mA
350mA
Maximum O/P Power
18.2W
25.2W
30W
Ripple & Noise
< 100mV
Under and Over Voltage protection
Feedback loop
Total O/P Regulation
< 2%
Short Circuit protection With auto recovery.
Yes
O/p power Indications.
N /A
Dynamic load Regulation
N /A
MECHANICAL
Description
Output
Dimensions
117mm X 63mm X 42mm
I/P plug Type
2 Pin MKDS Connector
O/P plug Type
2 Pin MKDS Connector
ENVIRONMENT
Description
Output
Operating temp
Upto 60 deg.C at full load
SAFETY
Description
Output
Isolation
1.5KV AC between Input and Output for 1.5 Min.
Leakage Current
10mA
