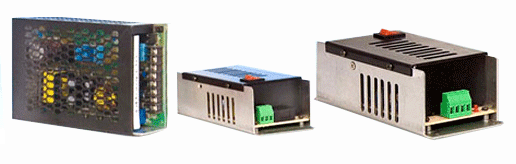

Enclosed Type SMPS Specification Sheet
PCB Name/ Description : Enclosed Type upto 72W
INPUT
Description
Output
AC Input Voltage
230V AC
AC Input Voltage range
90V TO 270V AC
AC Input frequency
50Hz to 60Hz
Primary current protection NTC & Fuse
Inrush Current
<15A
OUTPUT
Description
Single Output
Normal DC O/P Voltage
12V
24V
Minimum Load Current
0A
0A
Maximum Load Current
3A
3A
Maximum O/P Power
36W
72W
Ripple & Noise
< 60mV Peak to Peak
Under and Over Voltage protection 110%
Total O/P Regulation < 1%
Short Circuit protection With auto recovery. Yes
Withstand Voltage 1.5kV AC between I/P & O/P for 1min
  1kV AC between L, N & E for 1min
MECHANICAL

Description
Output
Dimensions 153mm X 72mm X 53mm
I/P plug Type 3 Pin MKDS Type Connector
O/P plug Type 2 Pin MKDS Type Connector
ENVIRONMENT

Description
Output
Operating temp Upto 60 deg.C at full load
